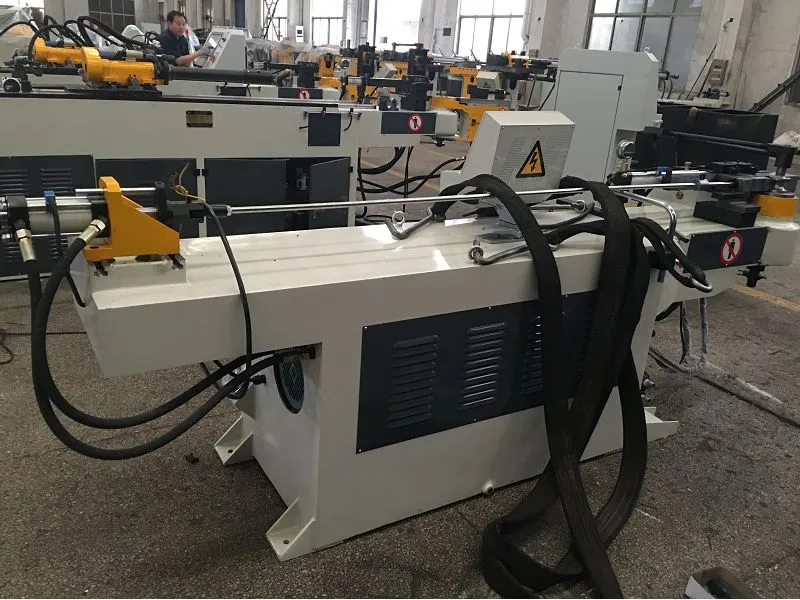

Semi Automatic Pipe Bending Machine

DW is single bending

38 is max bending capability

NC is digital control

B is with auxiliary pushing device

Manual and automatic pattern can be chose freely, controlled by NC, process steps showed in Chinese and English on the screen, operated by man-machine conversation mode.

It has functions of automatically counter and takes out core; it is also with anti-crease device.

Many angles can be set and controlled by many groups of procedure.

1. Max. bending capacity:φ38×2.0mm

2. Min. bending radius: R25

3. Max. bending radius: R200

4. Max. bending angle: 195°

5. Bending speed: 48°/s( With push device) 58°/s (Without push device)

6. Speed of －Bend: 61°/s (With push device) 75°/s (Without push device)

7. Clamp stroke: 55

8. Press stroke: 55

9. Control power:

AC 110V 20W AC contactor

DC 24V 90W Electromagnet

DC 12V 20W Proximity switch

DC 5V 10W NCU Control

10. Motor: Y112M-4 4KW

11. Flow capacity of oil pump: 24.48L/min

12. Rated pressure of system: 12Mpa

13. Normal working temperature: 40°-70°, Max. temperature is 60°-90°

14. Oil-tank capacity: 120L (46# hydraulic oil)

1.Payment terms: 30% T/T down payment, 70% T/T before shipment.

2.Delivery time: 20 days since receiving the advance payment.

3.Package: Iron case or Iron pallet.

4.Warranty period: We guarantee machine quality for one year, during this year,if spare parts of the machine were damaged, we can send the component to the customer by DHL, TNT freely.
