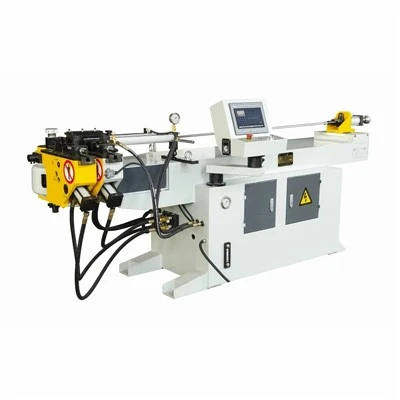

CNC Pipe Bending Machine
What is CNC Pipe Bending Machine?
A cnc bending machine is a type of computer-controlled machine used to bend and shape metal sheets and tubes into various shapes and forms. It is an advanced form of a press brake machine that uses cnc technology to accurately control the bending process and get more consistent and precise bends. The cnc bending machine can be programmed with precise instructions for the desired angle, bend radius, and length of each bend, allowing for consistent results in large production runs.
Advantages of CNC Pipe Bending Machine
Production Consistency
A cnc tube bending machine can produce consistent products that maintain the same shape, even with long and complex bends. The cnc tube bender can be programmed to bend the material several times in a single cycle. This helps manufacturers save time and money by increasing the efficiency of their production process.
Flexibility In Design
Cnc tube benders offer great design flexibility. The operator can easily adjust the settings and make changes to the bending pattern based on customer requirements. This helps them customize products and increase profitability.
High Precision
Manufacturers can use a cnc tube bending machine to create complex shapes with high precision and accuracy. The machine can be programmed to create intricate bends and shapes without any errors. A tube laser cutting machine turns out precise lengths of tubing to meet exacting specifications. This greatly reduces returns and waste.
Cost Savings
Using a cnc tube bender helps manufacturers save on labor costs. While these machines require skilled and highly trained operators, the machine does nearly all the calculating and the heavy work, reducing reliance on human labor. This then reduces costs, increasing profitability.
why choose us
Our product
Pipe bending machine, pipe-end forming machine, cutting machine and some other pipe processing machines.
Product application
We provide unitized sets of equipments for processing pipes for automobile, physical gymnastic equipment, steel-pipe furniture, plumbing and bathing industries.
Our certificate
We have passed the authentication of iso 9001:2015 quality management system and ce certificate.
Our service
Our has set up a standardized before and after sale network and supply good and quick service to our customers.
Manual Tube Bender
A manual tube bender is a simple machine that relies on the operator to manually adjust the tube and apply pressure to achieve the desired bend.
Rotary Draw Bender
A rotary draw bender is a more advanced machine that uses a hydraulically driven bending arm to bend the tube around a stationary die. This type of machine is ideal for producing complex and precise bends.
Roll Bender
A roll bender, also known as a pyramid bender, uses three adjustable rollers to bend the tube around a central axis. This type of machine is ideal for producing large-radius bends.
Mandrel Bender
A mandrel bender uses a mandrel, or a solid rod, to support and shape the tube during the bending process. This type of machine is ideal for producing tight-radius bends with minimal distortion or flattening.
Cnc Tube Bender
A cnc tube bender uses computer numerical control (cnc) technology to precisely control the bending process. This type of machine is ideal for high-volume production runs and complex bending processes.
CNC Pipe Bending Machine Performance by Work
Cnc Steel Pipe Bending
Cnc steel pipe bender machine mostly usage area is the bending work on steel pipes. With the force of servo linear axis, cnc steel pipe bending machine will increase the quality on bending for steel pipe bending results. Also with multi radius stacks, our cnc steel tube bender machine is giving more alternatives during steel pipe bending process.
Cnc Exhaust Pipe Bending
Cnc exhaust pipe bender machine will give perfect and more flexible results on complex exhaust pipe bending results. Cnc exhaust pipe bender machine can be helpful also bigger radiuses on exhaust pipe bending work with rolling function. More flexibility on exhaust bending design with cnc exhaust pipe bending machine.
Cnc Copper Tube Bending
Cnc copper tube bending machine can give perfect results on complex copper tube bending work. With the help of multi radius stacks, cnc copper tube bending machine gives our customer flexibility on copper pipe bending work. Also rolling function on cnc copper pipe bender is extending the product range.
Cnc Square Tube Bending
Cnc square tube bender machine will help you to face with challenge during square tube bending work. As all experienced people know, having good quality bending with square profile is not always easy. On our cnc square profile bending machine, it will be more easier withe force of servo linear axis. Cnc square tube bender machine will increase the quality on square tube bending results.
Cnc Aluminium Tube Bending
Cnc aluminium tube bending machine is giving perfect results with special aluminium pipe bending tools. We design our aluminium tube bending tools for having perfect results on our cnc aluminium pipe bending machine. The best results can be done before aluminium hardening process with help of high flexibility.
How to Choose CNC Pipe Bending Machine
Full Electric Tube Bending Machine
Full electric pipe bending machines are designed to enhance productivity, increase accuracy, and can offer repeatable consistency. All of these features combine into one desirable outcome: Improved efficiency.
Hybrid Tube Bending Machine?(Hydraulic+electric)
There are several reasons why using a hybrid bending machine is a good investment strategy. Many of these relate to cost savings and enhanced productivity. For example, most maintenance engineers have already been trained to look after hydraulic components. Also, hydraulic components are easily available at predictable industry prices.
Bending Capacity Chosen
Buying a machine with the intention of bending a tube at its maximum capacity always ends in trouble. This is because the strategy does not take into account the need for variable tolerance. The difference in tolerances between different grades of steel are considerable, so invest in a machine that gives you 10% and 20% leeway. This means that the cnc tube bending machine is rarely forced to work to capacity, and offers the potential of extending the performance range.
Bending Function Chosen
Straight pipes can be bent using an automatic pipe bending machine to perform single or multiple bends with the dies to create unique profiles. The form bound bending includes press bending and rotary draw bending. These pipe bending methods can produce complex shapes and are available for different types of ductile metal pipes.
Material Consider
Typically, round stock materials are processed in automatic pipe bending machines. In some cases, square or rectangular tubing or pipes are also used to bend in order to fit the specifications. Other factors of stock materials that are important in the bending process include the thickness of stock, tooling, and lubrication of the automatic pipe bending machines to optimize the operations as well as the product quality.
How to Use a CNC Bending Machine Correctly
Cnc Bending Machine For Angle Bending
A cnc bending machine for angle forming allows the user to specify the exact length of a bend without the need for a reference. The machine features two bending bolds that rotate during the bending process, giving a signal to the computer that determines the final stroke required. This system compensates for the spring back of each bend and provides high angle accuracy of +/ 0.2o, instantly after the first workpiece is inserted. The machine reduces the material waste compared to manual adjustment.
Cnc Bending Machine For Imprint Bending
A cnc bending machine for imprint bending is the ideal machine for a wide range of applications. The machine has all the benefits of cnc technology, including a modern touchscreen colour display and two axes of control. Programming is easy and intuitive, with the user interface enabling 200 different programs to be stored and swapped at any time. Stroke settings can be changed in steps of +/-0.1deg. The machine is easy to operate using a foot switch or a special manual control cable. It can be run in automatic or jogging modes.
Back Gauge Adjustment In Cnc Bending Machine
During a cnc bending job, a back gauge must be adjusted on a cnc bending machine to accurately gauge the material bending. The bend line is set at the nose of the punch, and a half of the material elongation goes to either side of the center. The backgauge location can be determined after performing the calculations. The backgauge position must be set from the front face of the die, a distance one-half of the width of the die body.
Stroke Adjustment In Cnc Bending Machine
In order to adjust the stroke, a cnc bending machine should have an oil pump. Start the machine and press the button to activate the pump. After starting the machine, adjust the stroke and make sure the plates are lined up with the bottom mold. You must remember that the upper die must have sufficient clearance, or you will end up damaging the mold. The machine’s stroke adjustment features manual fine tuning as well as electric quick adjustment.
Cnc Bending Machine For Bending Prisms With Electronic Angle Measurement
The cnc bending machine for prisms with angular measurement features electronic angular measurement and two flattened bending bars. It has high accuracy of +/ 0.1o, and it is a popular choice for small batches and single pieces. The bending tool rotates while the material is being bent, allowing the operator to set the required final stroke. The system also has an impact system, which allows the user to define the angle of rotation from which the stroke is calculated.
The Application Field of CNC Pipe Bending Machine
Pipe Bending Machines Are Widely Used In The Automotive Industry
Many pipes and tubes in automotive components need to be bent to meet design requirements. For example, automobile chassis, brake system, exhaust system, cooling system, etc., all need to be processed by pipe bending machines to ensure the accuracy and safety of the pipes.
Pipe Bending Machines Also Have Important Applications In The Construction Industry
In construction, the pipe bending machine is mainly used for processing steel pipes and aluminum pipes and making various curved staircase handrails, fences, doors and windows, balconies, and other architectural decorations. At the same time, the pipe bender can also process steel bars and steel plates to provide more accurate processing support for building structures.
Tube Bending Machines Also Play An Important Role In The Manufacture Of Medical Equipment
Many pipes, tubes, and stents in medical equipment require precision bending to meet usage requirements. For example, medical oxygen tubes, catheters, brackets, etc., all need to be processed with a tube bending machine.
Pipe Bending Machines Are Also Widely Used In Aviation, Metallurgy, The Chemical Industry, And Other Industries
In the aviation field, pipe bending machines are mainly used for processing pipes and tubes in aircraft engines and hydraulic systems. In the metallurgical industry, pipe bending machines are mainly used to process metal pipes of various specifications and shapes and to make various metal components and parts. In the chemical industry, pipe benders are mainly used to process various pipes and pipes, and to make chemical equipment and piping systems.
Precautions of CNC Pipe Bending Machine
Downward Movement
The downward rapid closing movement of the common pipe bender is generally a free-fall type, that is, the movement is generated by the weight of the pipe bender itself. But the manufacture of cnc pipe bender molds is not the case, but the hydraulic cylinder rodless cavity is used to generate pressure, so the fast-forward speed can reach 250mm/s, which is more suitable for the production of more powerful molds.
Static State
Automatic bending machine is in the rest position is the upper bending beam at the top dead center. This state is to prevent uncontrolled downward movement and reduce safety risks.
Decompression
Decompression without rod cavity or when the bottom dead center is reached, starting after the dwell time, can further improve the accuracy of the workpiece. Both holding pressure and reducing pressure can be controlled by proportional directional valve. The operating cycle time can be customized according to the needs. When decompression is required, it can be shortened as much as possible, but the decompression curve should not be too steep and as smooth as possible.
Return Trip
This involves a large return speed, which mainly depends on the flow of the pump and the pressure bearing area of the rod cavity of the hydraulic cylinder. In general, the closer to the fast speed, the higher the return efficiency. The return trip also requires synchronization.
Stamping And Bending
The next stage is stamping and bending, which is a key link in the production of pipe bender molds, and it is also the latter link. The stamping speed is limited by the oil supply of the oil pump, and it is also subject to the manual intervention of the proportional valve directional valve.
FAQ
Q: What is cnc pipe bending?
Q: What is cnc bending machine?
Q: What is a pipe bending machine?
Q: What does pipe bending do?
Q: What is the role of a cnc bending operator?
Q: Is cnc bending accurate?
Q: How does a bending machine work?
Q: What is pipe bending called?
Q: What is the principle of pipe bending?
Q: How is pipe bending done?
Q: Why use a pipe bender?
Q: What are the objectives of pipe bending machine?
Q: What is the process of pipe bending machine?
Q: How does cnc bending work?
Q: What are the standards for pipe bending?
Q: What is the working principle of pipe bending machine?
Q: Are cnc bending machines accurate?
Q: Who uses a pipe bender?
Q: What is a bender used for?
Q: What is the principle of pipe bending?
