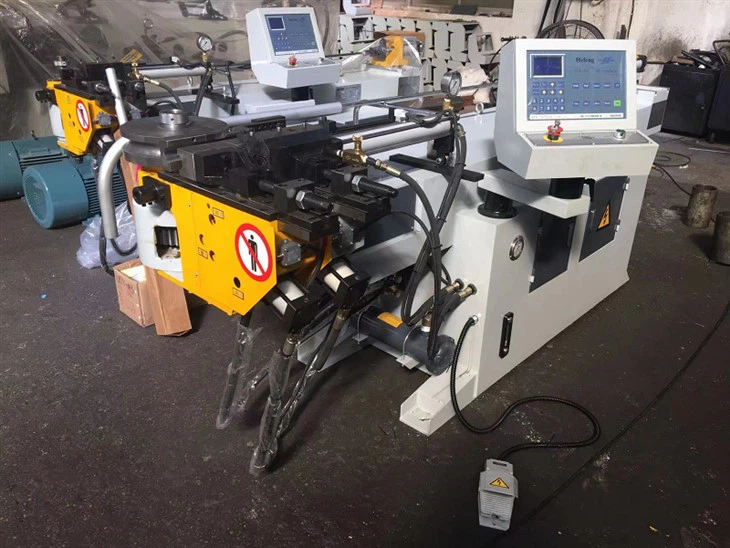

Semi Automatic Pipe Bender
Equipped with automatic counting function and automatic core pulling anti wrinkle equipment, making the product more perfect.
Manual, automatic selection and automatic conversion, microcomputer control, Chinese subtitle display, human-machine dialogue operation.
Equipped with automatic counting function and automatic core pulling anti wrinkle equipment, making the product more perfect.
Equipped with a cooling system, it can maintain a constant oil temperature, relatively balanced pressure, and strong bending.
Adopting self-lubricating bearings and connecting shafts for self-lubricating, without damaging the machine.
High-performance medium-sized pipe-bending machine with NC control, multi-groups of programs and multi-angle settings make your operation and program setting simpler, widely used in mass production and standardized products, such as: blast pipe, seat fender-guard and all the steel-pipe furniture, etc.
|
Machine Model |
Units |
DW50NCB |
|
Max Round Tube Mild Steel |
mm |
50.8x2 |
|
Solid Bar |
mm |
25 |
|
Min/Max Bend Radius |
mm |
35-250 |
|
Spindle Diameter |
mm |
45 |
|
Clamp Stroke |
mm |
65 |
|
Mandrell Stroke |
mm |
80 |
|
Max Bend Angle |
Deg |
200 |
|
Max Length Over Mandrel |
mm |
2230 |
|
Working Height |
mm |
970 |
|
Tooling Centreline Heigth |
mm |
41 |
|
DOB(Bending Speed) |
Deg/Sec |
44 |
|
Accuracy of DOB |
+/-Deg |
0.3 |
|
Total Power |
Kw |
5.5 |
|
Hydraulic Pressure |
Bar |
120 |
|
Hydraulic Tank Capacity |
L |
160 |
|
Machine Length |
mm |
2940 |
|
Machine Width |
mm |
720 |
|
Machine Height |
mm |
1210 |
|
Machine Weight |
Kg |
1200 |
|
Electrical parts |
|||
|
1 |
AC contactor |
TECO |
TAIWAN(CHINA) |
|
2 |
Thermal protector |
TECO |
TAIWAN(CHINA) |
|
3 |
Motor |
GUANSHUN |
NANTONG(CHINA) |
|
Hydraulic parts |
|||
|
6 |
Oil pump |
HYTEK |
TAIWAN(CHINA) |
|
7 |
Elec.valve |
HYTEK |
TAIWAN(CHINA) |
|
8 |
Overflow valve |
HYTEK |
TAIWAN(CHINA) |
|
9 |
Hydraulic valve |
HYTEK |
TAIWAN(CHINA) |
